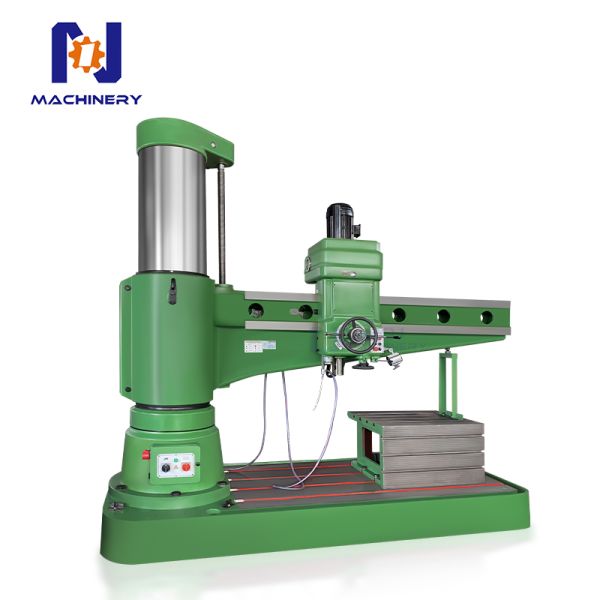

Heavy Duty Hydraulic Radial Drilling Machine Z3080 Drilling Machine 80mm

Brand Name : Zaozhuang NO.1

Model Number : Z3080

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 23000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Maximum bore diameter(mm） : 80

Distance from spindle face to base face（mm） : 550-1600

Column diameter（mm） : 450

Spindle stroke（mm） : 450

Spindle taper hole (Morse) : MT6

Spindle speed range（rpm） : 20-1600

Size of worktable（mm） : 1000x800x560

Contact Now

Heavy Duty Hydraulic Radial Drilling Machine Z3080 Drilling Machine 80mm

The Z3080 Radial Drilling Machine is a heavy-duty hole-making equipment with a robust structure and high rigidity. Capable of drilling up to 80mm diameter, its wide-ranging arm rotation is ideal for drilling, reaming, tapping, and other operations on large, heavy workpieces, ensuring stable performance and high productivity.

Standard configuration:

1. hydraulic transmission

2. Hydraulic pre - selection

3.hydraulic clamping

4.mechanical and electrical double insurance

5.hydraulic change speed

Product specification:

PARAMETER ITEM
Unit
Z3080x25
Maximum bore diameter
mm
80
Distance from spindle face to base face
mm
550-1600
Distance from spindle center line to column busbar
mm
500-2500
Column diameter
mm
450
Spindle stroke
mm
450
Spindle taper hole (Morse)
-
MT6
Spindle speed range
rpm
20-1600
Spindle speed series
step
16
Spindle feed range
mm/r
0.04-3.20
Spindle feed series
step
16
Size of worktable
mm
1000x800x560
Spindle box horizontal movement distance
mm
2000
Spindle motor power
kw
7.5
Weight of the whole machine
kg
11000
External dimensions
mm
3730x1400x3795

Details Display:

Heavy Duty Hydraulic Radial Drilling Machine Z3080 Drilling Machine 80mm

Heavy Duty Hydraulic Radial Drilling Machine Z3080 Drilling Machine 80mm

Heavy Duty Hydraulic Radial Drilling Machine Z3080 Drilling Machine 80mm
